TECHNOTRONIC DIMENSIONS: Computer Monitors For Sale

CRT Computer Monitors For Sale

All Items guaranteed working & not DOA unless otherwise specified.
Additional Guarantees or Service plans available on Request.

[ Payment Forms & Merchant Policy ]

Buyer Pays actual Shipping from VT, USA.

To Determine Shipping Costs - CONTACT US

VGA / SVGA 17":

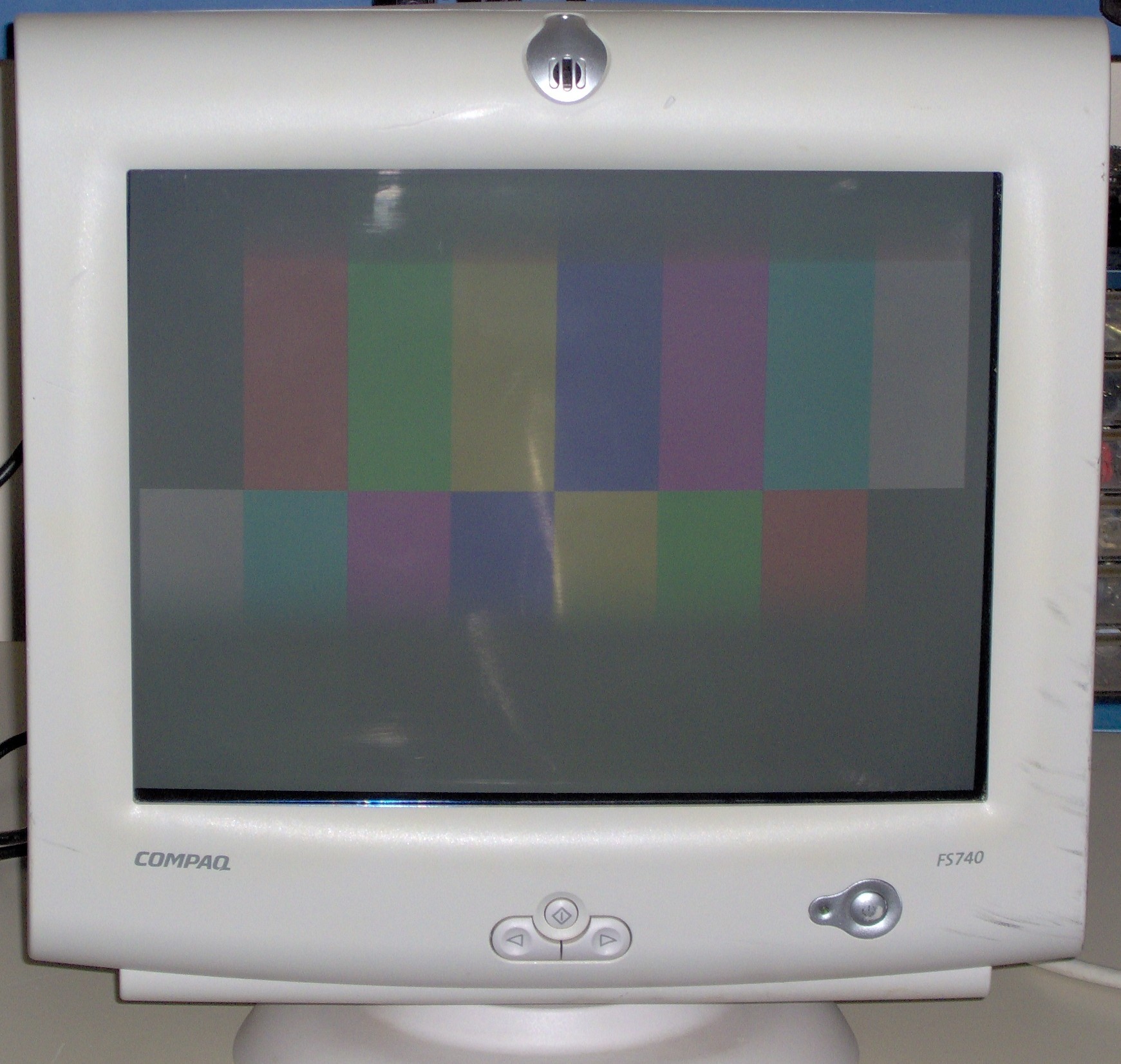

Input Power supply	120 VAC at 60 Hz
Power Consumption	100 W
Manufacturer	COMPAQ
Mfr. Date	DEC 2001
Mfr. Part Number	180407-002
Model No.	FS740
UPC CODE	43211901
Signal Input	R,G,B
VGA-SVGA Resolutions	1280 x 1024 / 60 Hz (maximum resolution) 1024 x 768 / 85 Hz (max flicker-free) 1024 x 768 / 75 and 60 Hz 800 x 600 / 85, 75 and 60 Hz 720 x 400 / 70 Hz 640 x 480 / 85 and 60 Hz 640 x 400 / 70 Hz
Horizontal Frequency	31.5 - 70 Khz
Vertical Frequency	50 - 120 hz
Synch Input	TTL
Plug N Play	1 & 2B
Power Saving	Energy Star, VESA DPMS
CRT Dot Pitch	0.25 mm / anti-glare, anti-reflective
VIDEO BANDWIDTH	108Mhz
ASPECT RATIO	4:3
Signal Connector	D sub-mini 15 pin
MICROPHONE	Integrated Telex Microphone
Overall Width	14.1"
Overall Height	16.4"
Overall Depth	17.8"
Physical Weight	~38 Lbs.

$149.99 + *Shipping* Includes Power Cord.

COMMENTS:
Monitor powers up and displays good test pattern in vga & svga modes. Has some dark blemish marks on right side front of cabinet. Microphone untested but probably ok.

VGA / SVGA 14":

Input Power supply	120 VAC at 60 Hz
Power Consumption	80 W
Manufacturer	KDS
Model No.	VS-4D
Signal Input	R,G,B
VGA Resolution	640x480
SVGA Resolution	1024x786 Max.
Horizontal Frequency	28 to 55 kHz
Vertical Frequency	40-120 Hz
Plug N Play	1 & 2B
Power Saving	Energy Star, VESA DPMS
CRT Dot Pitch	0.28 mm
Signal Connector	D sub-mini 15 pin
Overall Width	14.1"
Overall Height	15.2"
Overall Depth	13.7"
Physical Weight	25.1 Lbs.

**SOLD OUT - For Technical Reference Data Only **

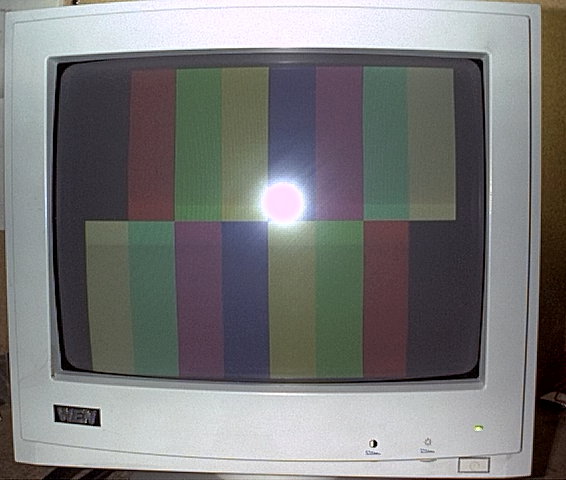

Input Power supply	120 VAC at 60 Hz
Power Consumption	65 W
Manufacturer	WEN
Model No.	JK-1461
Signal Input	R,G,B
VGA Resolution	640x480
SVGA Resolution	800x600
Horizontal Frequency	30 to 35 kHz
Vertical Frequency	60-75 Hz
FCC ID	AMPJK1461
Power Saving	NONE
CRT Dot Pitch	UNK
Signal Connector	D sub-mini 15 pin
Overall Width	14.1"
Overall Height	15.0" (+Swivel)
Overall Depth	14"
Physical Weight	25.5 Lbs.

**SOLD OUT - For Technical Reference Data Only **

EGA / CGA / Monochrome:

$Princeton CGA \ EGA Monitor$

Input Power supply	120 VAC at 60 Hz
FCC Class	B
Power Consumption	95 W
Manufacturer	Princeton
Model No.	HX-12E
FCC ID	ASK904CM1200AE
Signal Input	R,G,B
CGA Resolution	320x200, 16 Colors, 15.75kHz
EGA Resolution	640x350, 64 Colors, 22 kHz
Horizontal Frequency	15.7 to 22 kHz
Vertical Frequency	60 Hz
CRT Deflection Angle	90
CRT Dot Pitch	0.31 mm
Signal Connector	D sub-mini 9 pin
Overall Width	354 mm
Overall Height	304 mm
Overall Depth	380 mm
Physical Weight	12.8 kg / 27 Lbs.

**SOLD OUT - For Technical Reference Data Only **

Input Power supply	120 VAC at 60 Hz
FCC Class	B
Power Consumption	67 W
Manufacturer	Princeton
Model No.	HX-12
FCC ID	ASK904CM1200A
Signal Input	TTL
CGA Resolution	320x200, 16 Colors, 15.75kHz Plus 640x200
Horizontal Frequency	15.7 khz
Vertical Frequency	60 hz
CRT Deflection Angle	76
CRT Dot Pitch	UNK
Signal Connector	D sub-mini 9 pin
Overall Width	354 mm
Overall Height	304 mm
Overall Depth	380 mm
Physical Weight	12.8 kg / 27 Lbs.

**SOLD OUT - For Technical Reference Data Only **

Input Power supply	120 VAC at 60 Hz
FCC Class	B
Power Consumption	20 W
Manufacturer	Beltron
Model No.	GM-1000
FCC ID	DQG7JPGM1211
Signal Input	TTL
MGA Resolution	Amber Hi-Res / Herculese
Horizontal Frequency	18.4 khz
Vertical Frequency	50 hz - UNK
CRT Deflection Angle	UNK
CRT Dot Pitch	UNK
Signal Connector	D sub-mini 9 pin
Overall Width
Overall Height
Overall Depth
Physical Weight	24.2 lbs / 11 kgs

**SOLD OUT - For Technical Reference Data Only **

Input Power supply	120-220 VAC at 60 Hz
FCC Class	B
Power Consumption	20 W
Manufacturer	Motorola / DISPLAY TECHNOLOGIES
Model No.	DS3000-355A
FCC ID	NONE
Signal Input	TTL
MGA Resolution	Amber Mono
Horizontal Frequency	15.75 khz
Vertical Frequency	60 hz
CRT Deflection Angle	UNK
CRT Dot Pitch	UNK
CRT Part No.'s	CE903M12P31GRZ, CE903M12P31, CEULL99H1TE (Clinton electronics corp)
Main PCB No.	84D25900B02
Power supply No.	25D25996C04
Signal Connector	BNC + 10 pin edge connector
Overall Width	12"
Overall Height	10"
Overall Depth	9"
Physical Weight	14 lbs / 6.35 kgs

DS3000-355A parts

(1) Used monitor chassis as shown in picture
** (IN STOCK CONTACT US) **

NOTE:

This Terminal is missing the flyback transformer. CRT has no screen burn and will light with the proper flyback. Input pcb has an intermittent video issue.

RS232 Dumb Terminals

Input Power supply	120 VAC at 60 Hz
FCC Class	B
Power Consumption	20 W
Manufacturer	QUME
Model No.	QUT102
Signal Input	Modular Keyboard
MGA Resolution	Green Monochrome Std.
Horizontal Frequency	NA - UNK
Vertical Frequency	NA - UNK
CRT Deflection Angle	UNK
CRT Dot Pitch	UNK
Signal Connector	RS-232 Serial
OverallWidth	354 mm
Overall Height	304 mm
Overall Depth	380 mm
Physical Weight	12.8 kg / 27 Lbs.

$189.99 + *Shipping* Includes Power Cord.

NOTE:

This Terminal is missing the Keyboard, but Powers up and displays a good Picture.
